Hydraulic Hose Fittings Adapters
Metallic tube connections for fluid
Hydroulic Adapters and Fittings
DIN 2353 and ISO 8434-1 , EN 3850 DIN 20078 standards can be applied
Items we mostly focus on producing;

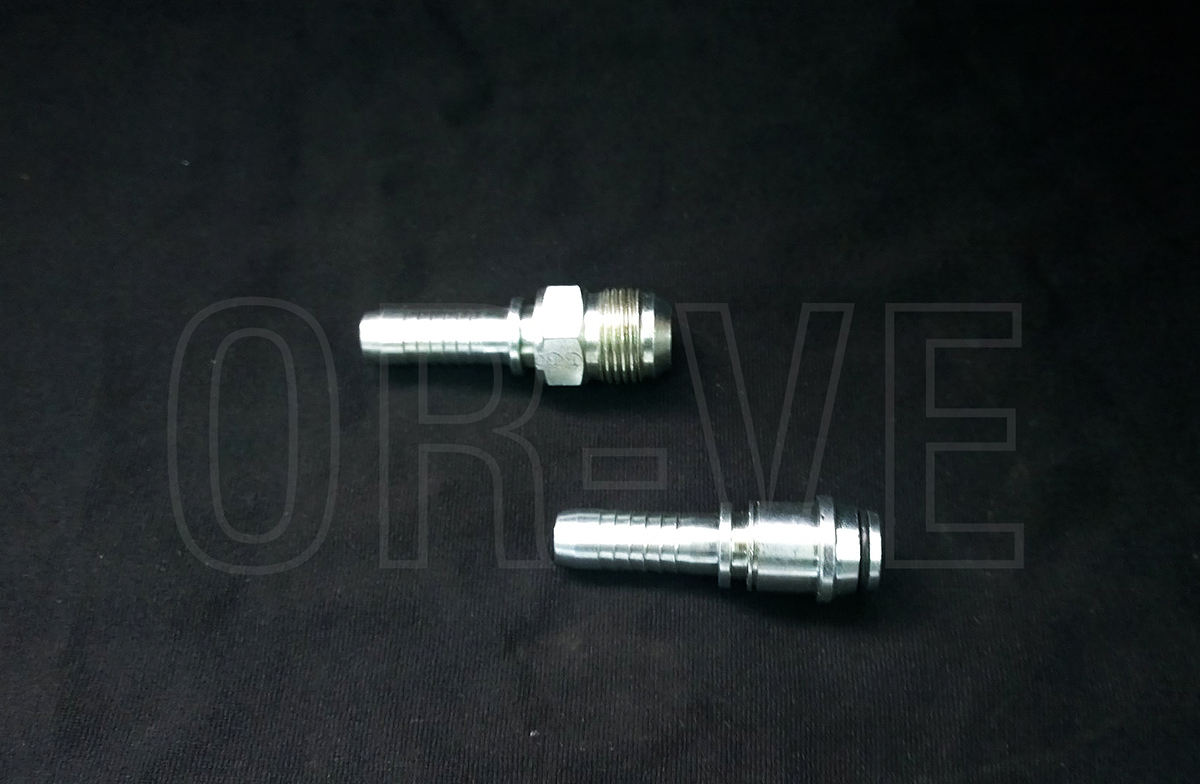

Metric L Series Male Straight Hose Fitting with Nut

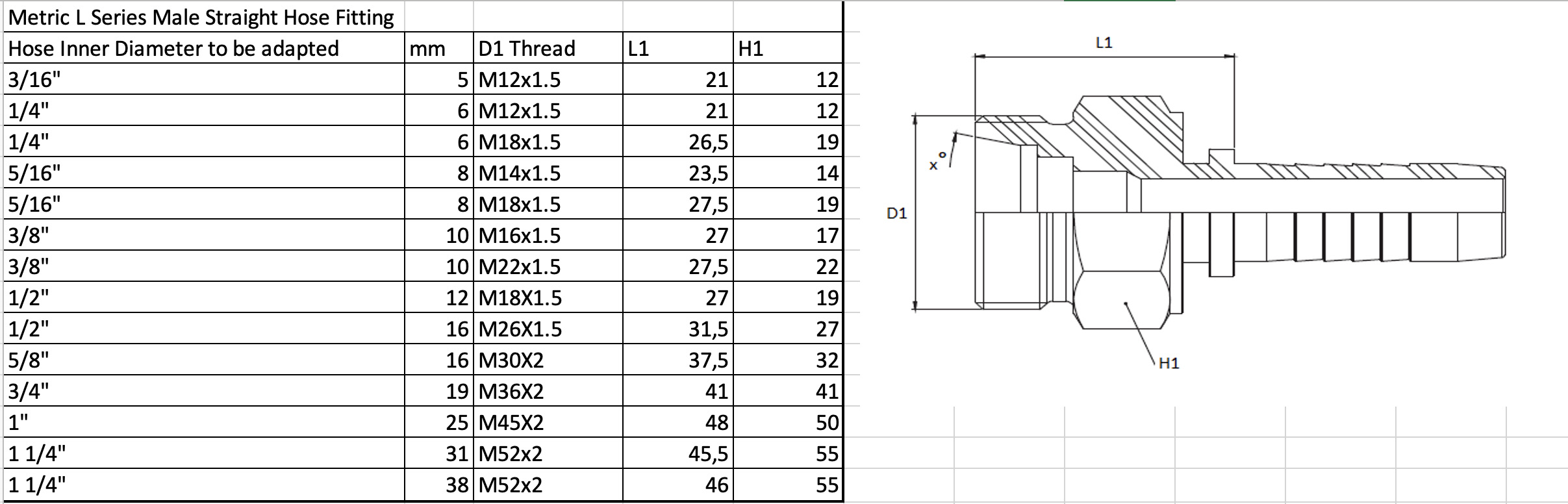

Metric L Series Male Straight Hose Fitting

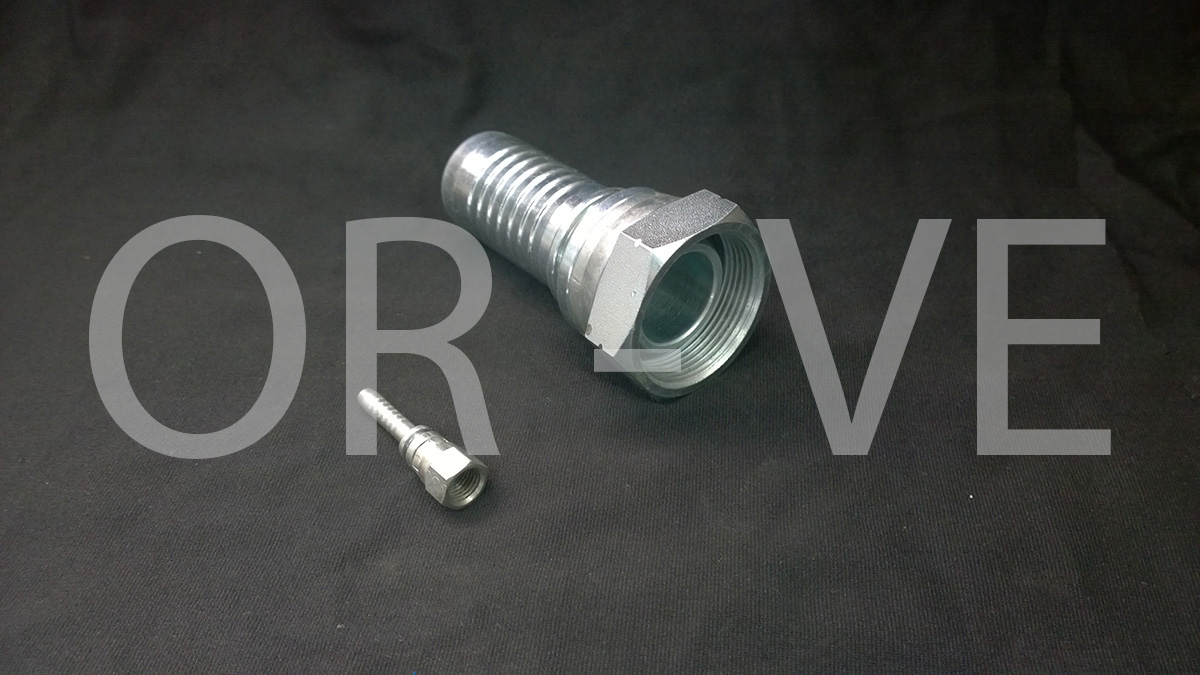

Female Swivel L Series with O-Ring

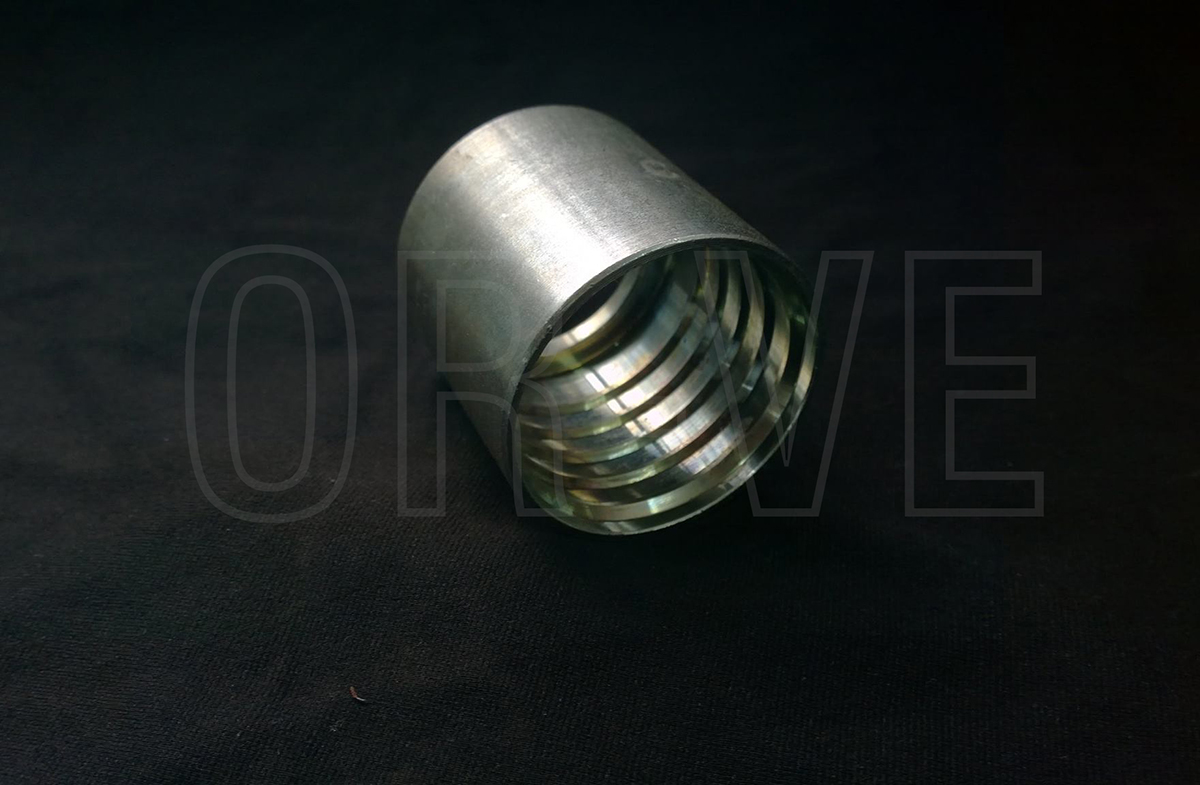

Crimp Ferrules, Skive - No Skive
Materials we expertise,
11SMnPb30+C 1.0718+C DIN EN 10277-3
S355J2G3 1.0570 DIN EN 10250-2
X2CrNiMo17-12-2 1.4404 EN 10088-2
X6CrNiMoTi17-12-2 1.4571 EN 10088-2
CuZn35Ni2 2.0540 DIN 17660 DIN EN ISO 17672
Fittings in standards such as b55200 (BSP), SAEJ514 (JIC), SAE J1453 (ORFS) JIS B 8363; B SAE J518 (with Flange) can be easily produced. Please don't hesitate to contact and send your drawings.

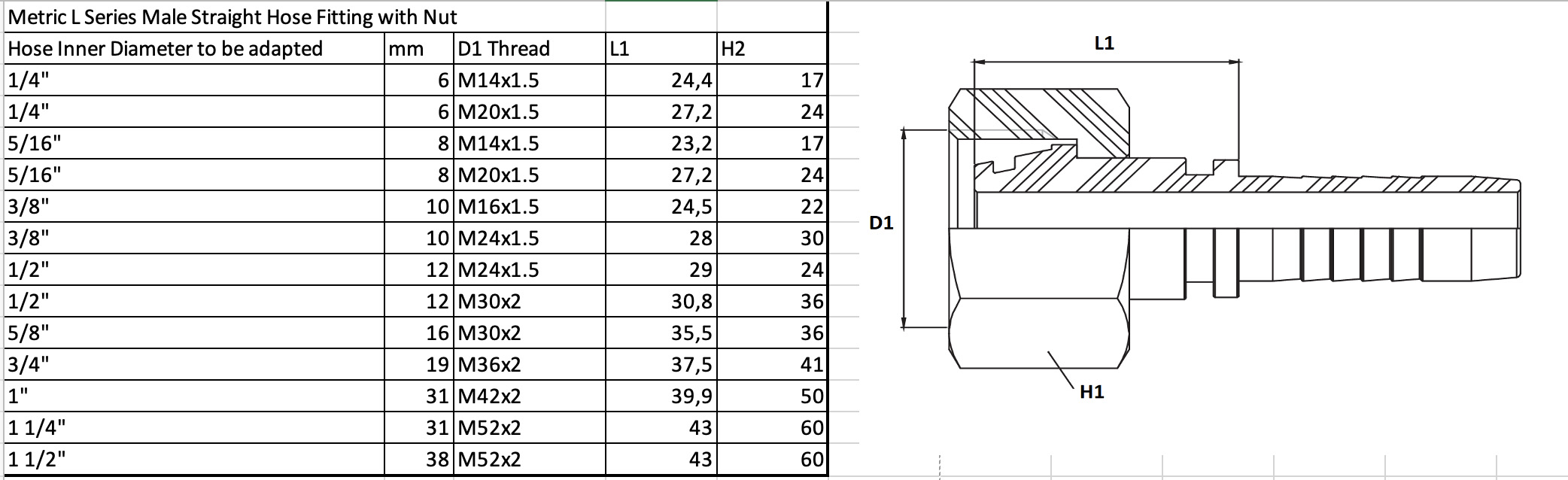

| Metric L Series Male Straight Hose Fitting with Nut | ||||
| Hose Inner Diameter to be adapted | mm | D1 Thread | L1 | H2 |
| 1/4" | 6 | M14x1.5 | 24,4 | 17 |
| 1/4" | 6 | M20x1.5 | 27,2 | 24 |
| 5/16" | 8 | M14x1.5 | 23,2 | 17 |
| 5/16" | 8 | M20x1.5 | 27,2 | 24 |
| 3/8" | 10 | M16x1.5 | 24,5 | 22 |
| 3/8" | 10 | M24x1.5 | 28 | 30 |
| 1/2" | 12 | M24x1.5 | 29 | 24 |
| 1/2" | 12 | M30x2 | 30,8 | 36 |
| 5/8" | 16 | M30x2 | 35,5 | 36 |
| 3/4" | 19 | M36x2 | 37,5 | 41 |
| 1" | 31 | M42x2 | 39,9 | 50 |
| 1 1/4" | 31 | M52x2 | 43 | 60 |
| 1 1/2" | 38 | M52x2 | 43 | 60 |
