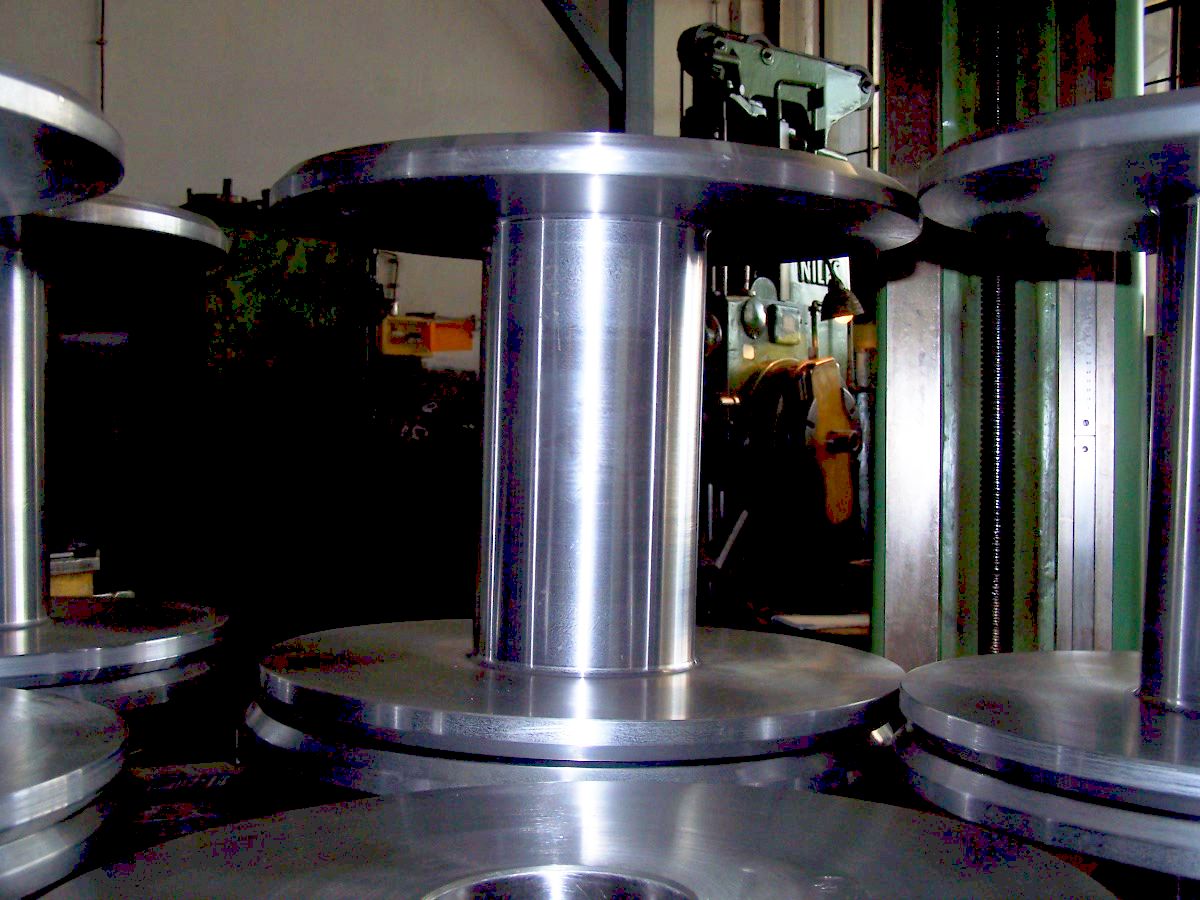

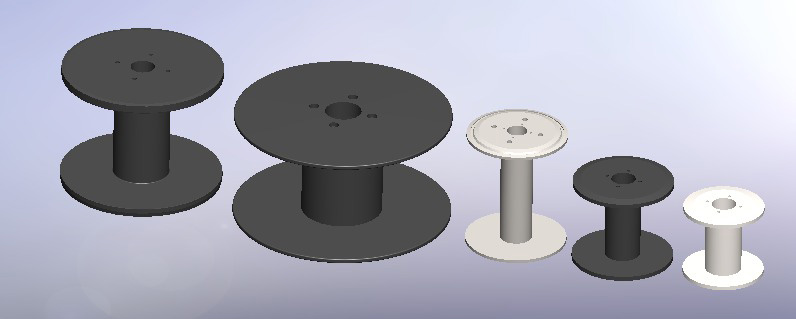

Fully Machined Reels

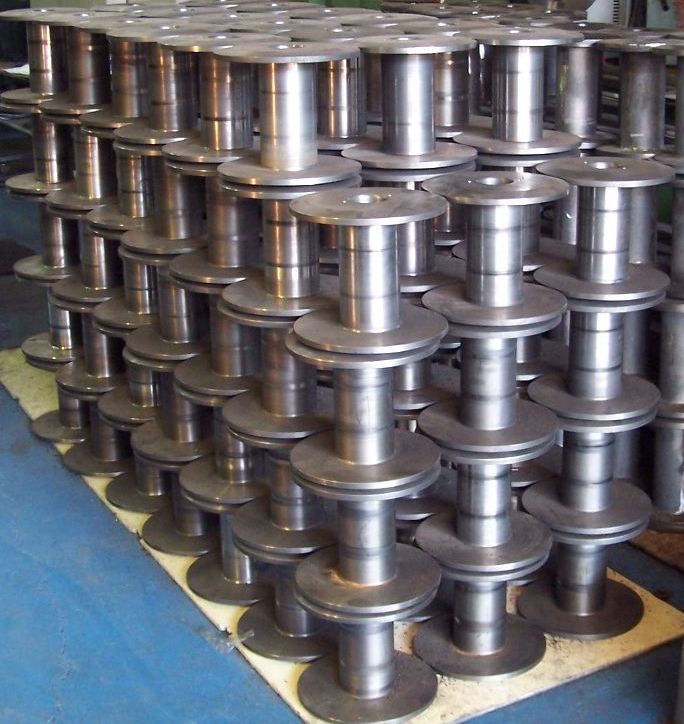

Fully machined forged / spherical graphite ductile iron casted reel
For steel wire / bead wire / cable wire drawing or winding process.
Logo or numbering engraved if required.
Painted or machined according to customers needs.
Holes or bushing can be applied according to customers needs, balanced through CNC Turning process.
Materials we expertise;

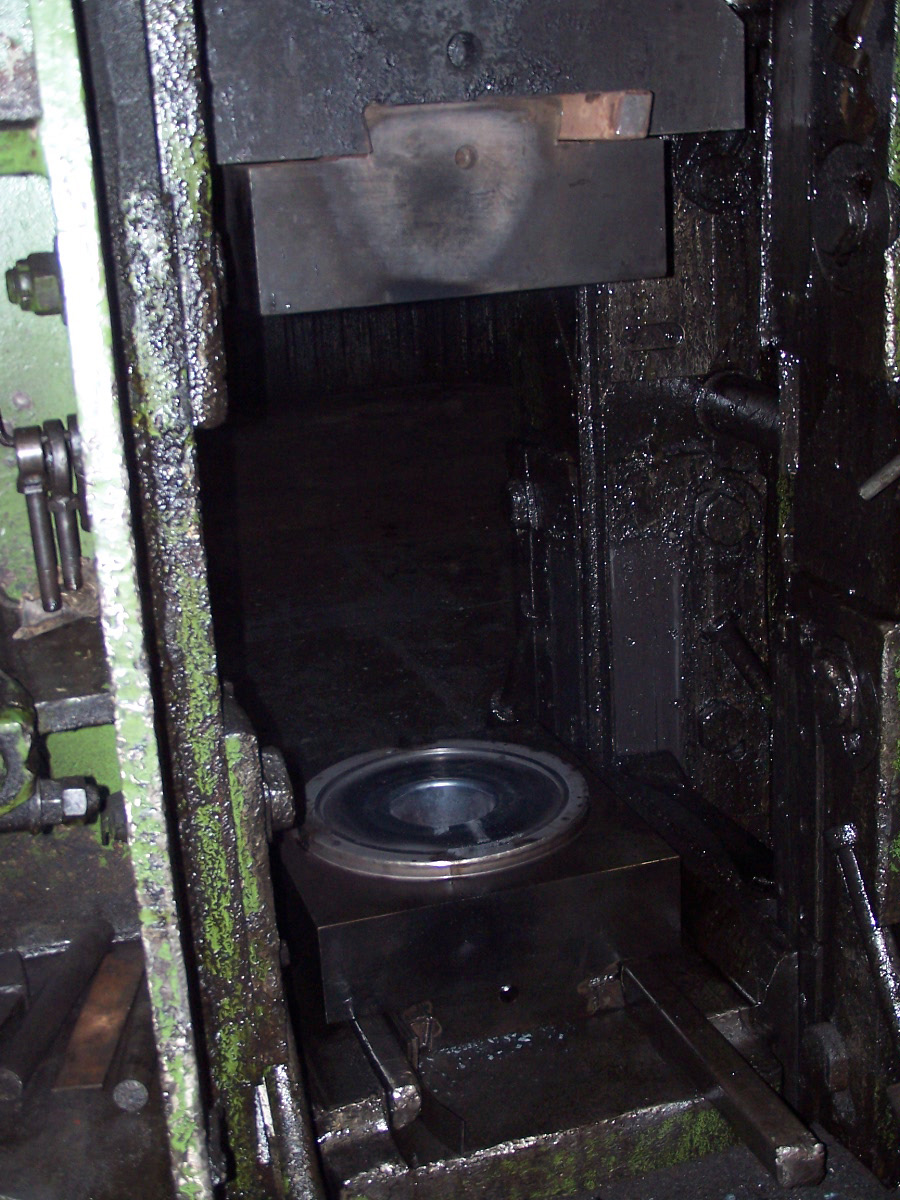

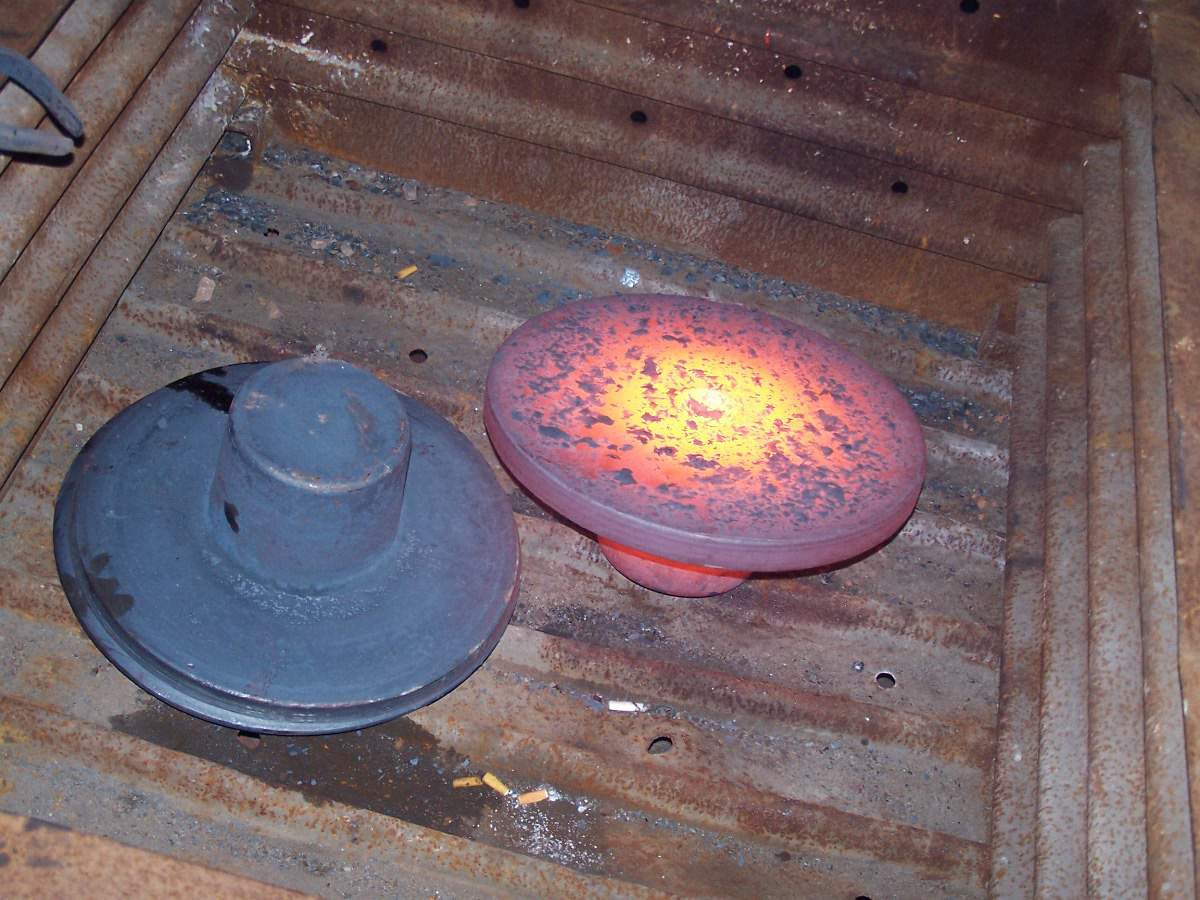

AISI 4140 / 42CrMo4 / 1.7225 heat forged.
DIN 1693 GGG40 / ASTM A536 Gr. 60-40-18 / EN-GJS-400-18 Ductile iron spherical graphite casting.
Dimensions are given as past productions; however, customers special requirements can be obtained easily.
|
D1 |
D2 |
D3 |
L1 |
L2 |
Material |
Process |
|
|
OS-24 |
60 |
90 |
202 |
194 |
164 |
ASTM A536 Gr. 60-40-18 / EN-GJS-400-18 |
Casting |
|
OS-46 |
60 |
98 |
250 |
225 |
193 |
ASTM A536 Gr. 60-40-18 / EN-GJS-400-18 |
Casting |
|
OS-102 |
78 |
98 |
250 |
275 |
312 |
AISI 4140 / X44Cr6Mo4 |
Forging |
|
OS-182 |
62 |
139 |
400 |
315 |
270 |
AISI 4140 / X44Cr6Mo4 |
Forging |
|
OS-224 |
70.5 |
200 |
538 |
288 |
250 |
ASTM A536 Gr. 60-40-18 / EN-GJS-400-18 |
Casting |
|
All diameters in mm. |
|||||||
